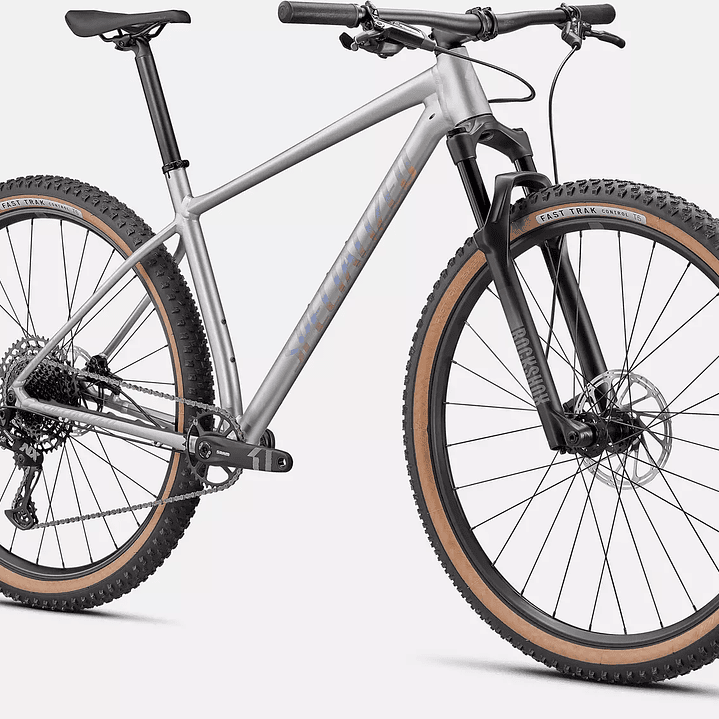

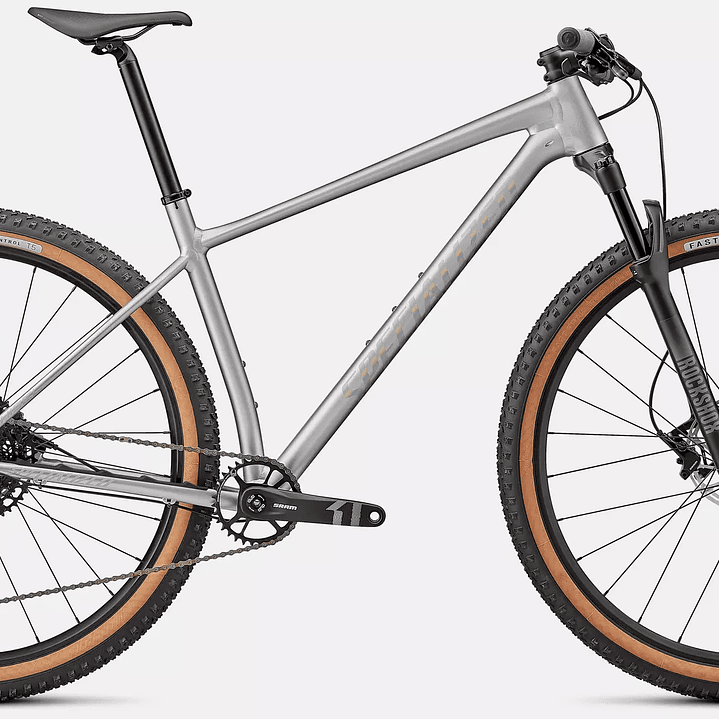

BICICLETA SPECIALIZED CHISEL HARTTRAIL COMP

Especificaciones técnicas

Frameset

CUADRO

Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible

ABRAZADERA

Specialized Alloy, 34.9mm

Suspension

HORQUILLA

RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)

Brakes

FRENO DELANTERO

SRAM Level T hydraulic disc, 2-Piston Caliper, Centerline Rotor, 160mm (XS/S/M), 180mm (L/XL)

FRENO TRASERO

SRAM Level T, Post Mount, 160mm Centerline Rotor

Drivetrain

PALANCA DE CAMBIOS

SRAM NX Eagle, trigger, 12-speed

DESVIADOR TRASERO

SRAM NX Eagle, 12-speed

CASSETTE

SRAM NX Eagle, 12-speed, 11-50t

CADENA

SRAM, SX Eagle, 12-speed

PEDALIER

SRAM X1000 Eagle, DUB, 170/175mm 32T

EJE DE CENTRO

SRAM DUB, BSA 73mm, Threaded

Wheels & Tires

LLANTAS

Specialized Alloy, hookless, Tubeless ready, 25mm inner width

MAZA DELANTERA

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

MAZA TRASERA

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h

RAYOS

Stainless, 14g

LLANTA DELANTERA

Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35

NEUMÁTICO TRASERO

Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35

CAMARAS

Standard 40mm PV 29x1.75-2.4

Cockpit

POSTE

3D-forged alloy, 31.8mm, 7-degree rise

MANUBRIO

Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm

Grips

Specialized Trail Grips

ASIENTO

Body Geometry Power Sport, steel rails

POSTE DE ASIENTO

Specialized Alloy, Single Bolt, 30.9mm

* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
